SC Series Cuber
1/24

SC Series Cuber

IM-SC130/H
$7,370.00 AUD
Model
Build

Australian Made

Made to Order

Built to Last

Return & Refunds

Heatlie has a 60-day return policy and all returns, cancellations and exchanges will incur a 20% restocking fee and a delivery fee from the place of pick up to the Heatlie factory. Alternatively, you may wish to organize your own transport at your own cost, to return the goods. Any refunds will only be given once the goods have been returned, inspected and are deemed to have...

1. Not been used

2. In new condition without any scratches, dents or marks that may occur through transport and use that will require that product to be refurbished in any way, for re-sale. This includes packaging.

Proof of purchase is always required and this includes a corresponding Serial Number.

Heatlie does not accept change of mind returns, nor will we refund if you have found the same product cheaper elsewhere.

Shipping

Shipping Options

You will only be offered one shipping option for your order. We use two couriers, TNT/FedEx and Australia Post. Depending on the size, weight and volume of your order, you will be offered the corresponding service.

TNT/FedEx - Technology Sensitive express

Australia Post - Parcel Post & Express Post

Shipping Costs

After adding your product to the cart and proceeding to the checkout, you will be prompted to enter your delivery address. From here we use a service that delivers live rates from couriers to provide a price based on order size, weight, volume and your shipping location. Heatlie BBQs has no control over these prices.

Your order may be subject to further fees such as a redelivery fee of $25 if the initial delivery attempt by the courier is unsuccessful.

Order Lead Times

BBQ manufacturing can take several days or weeks to complete. We can not make any promises as to delivery times and lead times. You will receive tracking information once your order has left our premises.

Most orders containing only spare parts/accessories will usually leave us within 1-3 days. This still cannot be guaranteed.

Freight

Heatlie BBQs carries insurance for all goods freighted. Once goods are set down at designated drop off point, they are no longer insured by Heatlie BBQs. Therefore, the customer needs to give clear instructions on where goods are to be delivered. Heatlie BBQs is not responsible for any goods lost, stolen or damaged after they have been signed over to the customer, their designated person or dropped at a stop instructed by the customer, (except in the event of damage which has occurred whilst being freighted as outlined below).

If no person is available to sign or no instructions have been left for the drop off of goods, then the goods may be taken back to the nearest depot and cost to retrieve goods will be the responsibility of the customer. Heatlie BBQs packages all goods appropriately to avoid and or minimize any damage being sustained during freight. Unfortunately, damage can occur which is beyond our control. It is the customer's responsibility to look over the goods when signing for delivery and making a note on the delivery cart note of any damage they perceive.

In the event that no damage was perceived, and the customer has acknowledged that the goods have been delivered in good order and condition. It is the customer's responsibility to unwrap and inspect goods within the first 48 hours of taking delivery. If damage is evident, the customer must notify Heatlie BBQs within this set time, in writing, outlining all damage sustained, accompanied by photographic evidence to this effect.

Heatlie BBQs require the goods to be repacked by the customer to an adequate standard for freight. In most cases, Heatlie BBQS will have damaged goods refreighted back to our factory, where goods will be inspected. In cases where claim of damage is proven - replacement of same will be sent back to customer. All goods must be returned in same condition as sent, except for damage sustained in freight. Claims of damage are limited to damage to goods only.

Heatlie BBQs does not cover any consequential loss or damage suffered by the customer as a result of the damage of goods.

Ordered Goods

It is the customer's responsibility to check over their goods within 48 hours of receiving them to ensure that the item/items are exactly what was ordered. Faulty items need to be sent back to Heatlie BBQs.

Heatlie BBQs require the goods to be repacked by the customer to an adequate standard for freight. In most cases, Heatlie BBQs will have goods refreighted back to our factory, where goods will be inspected. All goods must be returned in same condition as sent. Heatlie BBQs will view and determine if item is faulty or not what was ordered. If the item is deemed to be in good working order, not damaged and represents what was ordered then the cost of freight will be at the customer's expense.

Change of mind and not liking what was ordered from the website is not deemed as sufficient for return or refund. If Heatlie BBQs is notified within 48 hours of customer receiving goods and an item is deemed to be either faulty or not what was ordered, then Heatlie BBQs will make all reasonable efforts to correct the situation.

INSPECT YOUR DELIVERY FOR DAMAGE

Your package should arrive securely wrapped. If this is not the case please take a photo and contact us immediately.

INSPECT YOUR ORDER

Verify: What you have received is what you have ordered.

MAKE SURE THIS IS NOT THROWN OUT IN THE PACKAGING.

Inspect: All items for defects or damage.

If defects or damage has occurred:

Notify info@heatlie.com.au within 48 hours of delivery being made to ensure we are able to act promptly. Include detailed photos, details of what has occurred and the sales invoice/order number.

WE WILL NOT ACCEPT any claims for damaged goods after 10 days from receipt of goods. Goods must be installed and used within 8 weeks of receipt.

Finally, enjoy using your new BBQ!

Warranty

Heatlie BBQs warrants its products to be free of original manufacturing defects in material and workmanship, for a period of ten years from the date of purchase for domestic use and one year for commercial use. Any claim must be made within this time, dating from the date of purchase.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

This warranty is subject to the following conditions:

  1. The warranty applies to the original owner, so long as the original date of purchase can be verified or Warranty Card has been completed and returned to Heatlie Engineering.
  2. The owner has the responsibility of adequately packaging the product and transporting it under insurance to place of purchase, Heatlie Authorised Service Centre, or to Heatlie Engineering, at the owner’scost.
  3. Warranty service must be performed by a Heatlie Authorised Service Centre or by Heatlie Engineering.
  4. Installation must conform to the applicable Gas and Building standards laid down by the country or state, and according to the Heatlie product instructions.
  5. This warranty policy does not cover any problem associated with rust.
  6. This warranty policy does not cover buckling or warping of the hotplate.
  7. Lack of maintenance, abuse, misuse, neglect, accident or improper installation of the appliance will not be covered.
  8. Corrosion or damage caused by exposure to the elements, insects, weather or hail will not be covered under this warranty.NOTE: All barbecues must be covered by a weatherproof cover when not in use.
  9. Any evidence that the product has been modified or serviced by an unauthorised person will voidthe warranty.
  10. Heatlie Authorised Service Centres or their representatives may provide on-site warranty service.

No other costs shall be covered by warranty other than the costs of parts and labour.

In the event that warranty service is required, contact a Heatlie Authorised Service Centre or the retailer from whom the product was purchased.
No other warranties, either expressed or implied, whether by distributor, retailer or employees of Heatlie, will be recognized or honoured by Heatlie. This limited warranty sets forth the sole remedy of the owner. The total liability of Heatlie Engineering is limited to the purchase of the product.

Heatlie are continually updating and improving their products. Therefore details and specifications are subject to change.

Description
  • Fully microprocessor controlled
  • 304 grade stainless steel cabinet
  • Nickel plated, double sided evaporator
  • Ice making capacity up to 1100kg per day for largest model
  • Ice storage capacity up to 400kg per day for largest model
  • Minimal water wastage
  • Available as self contained air cooled, remote air cooled or water cooled
  • Australian made
  • Food grade polyethylene bin liner with non CFC foamed-in-place insulation
  • Can be supplied with or without storage bin
  • Easy maintenance. Convenient access to all components

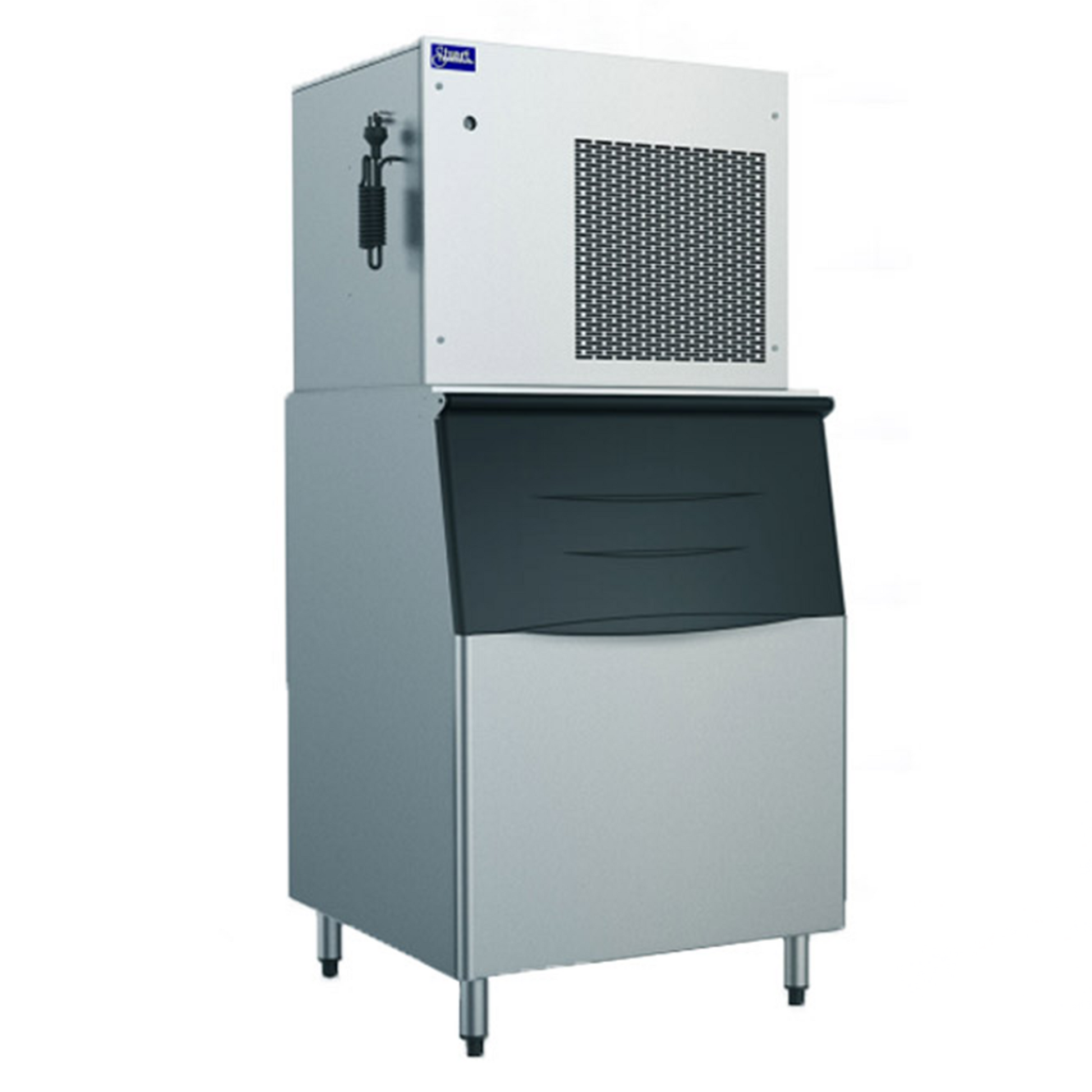

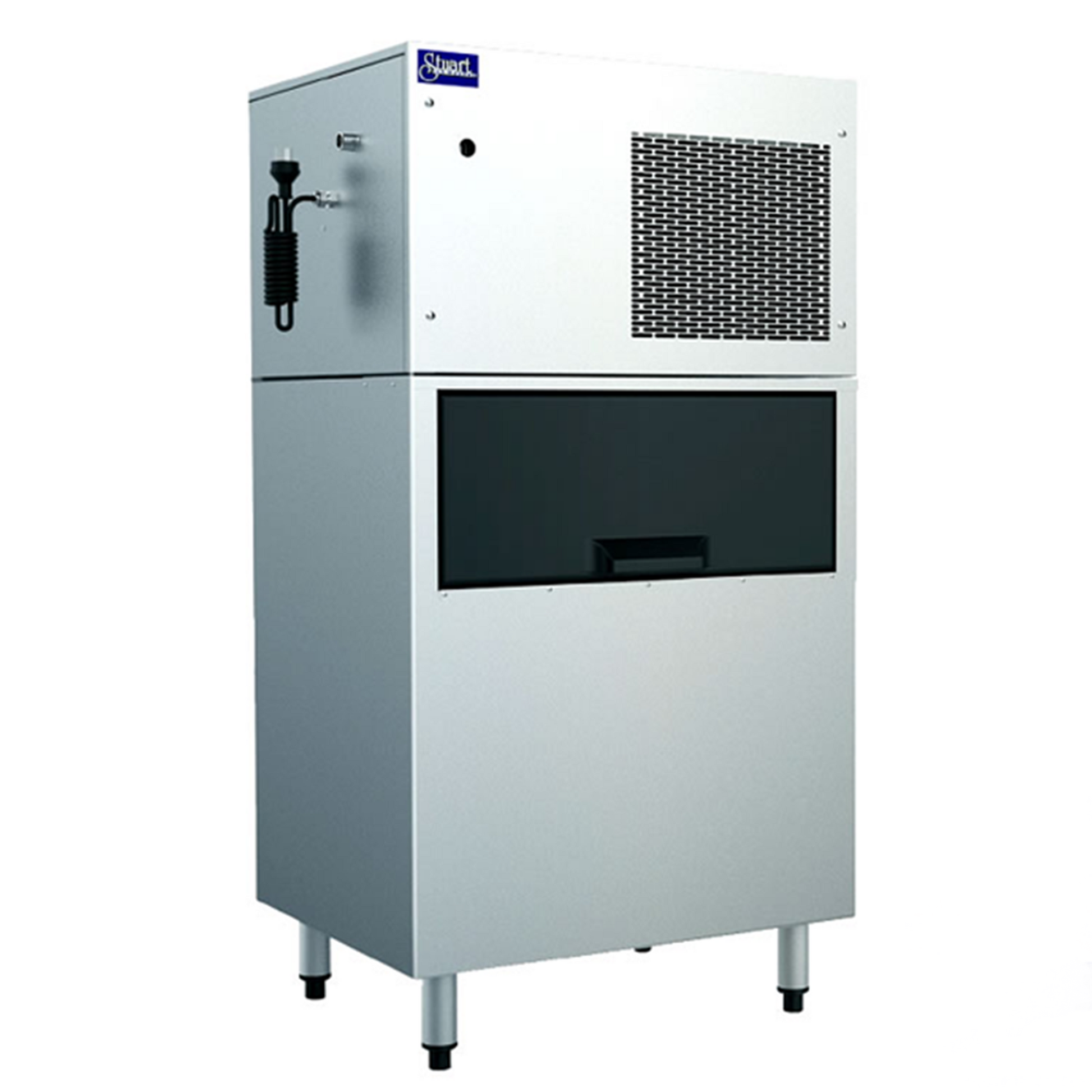

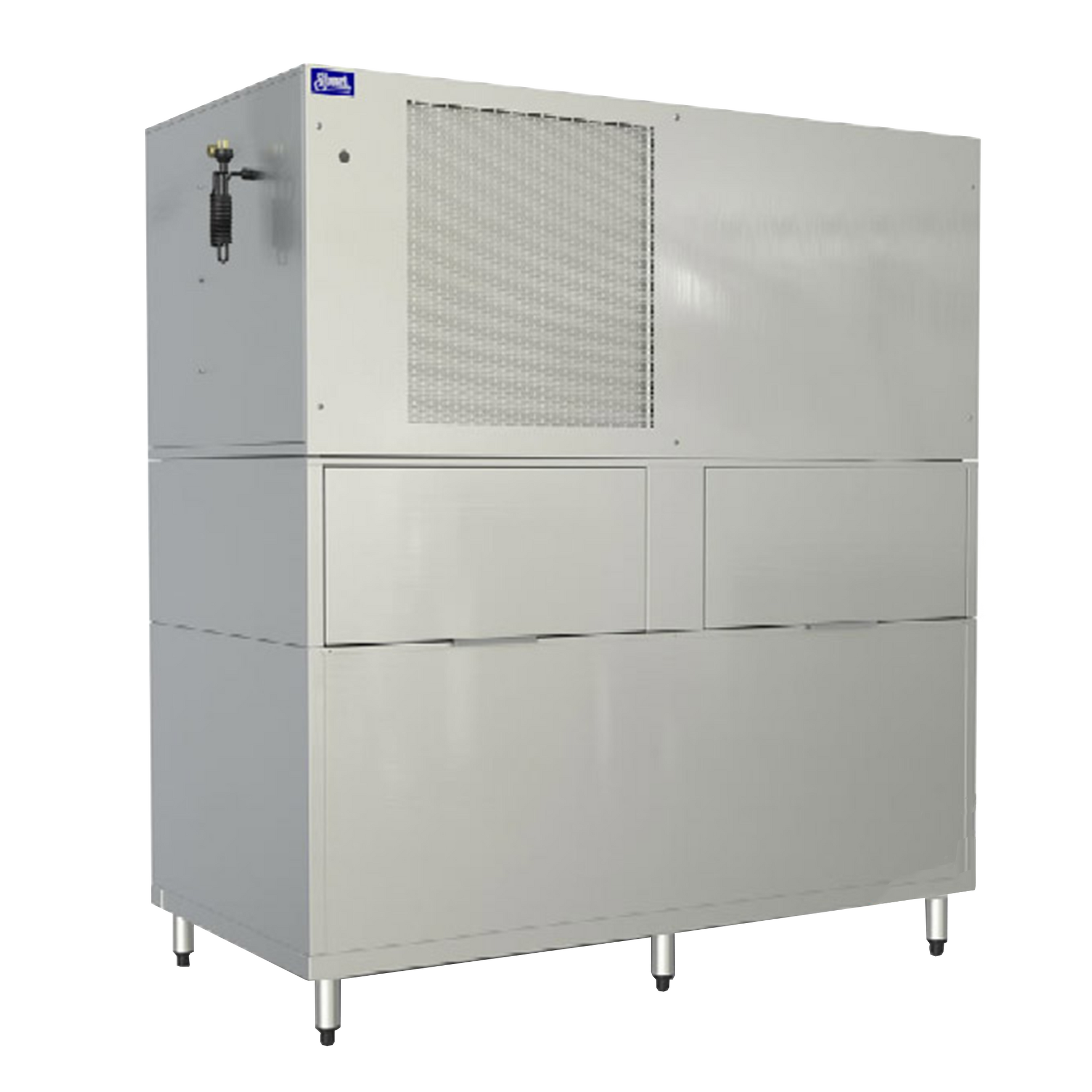

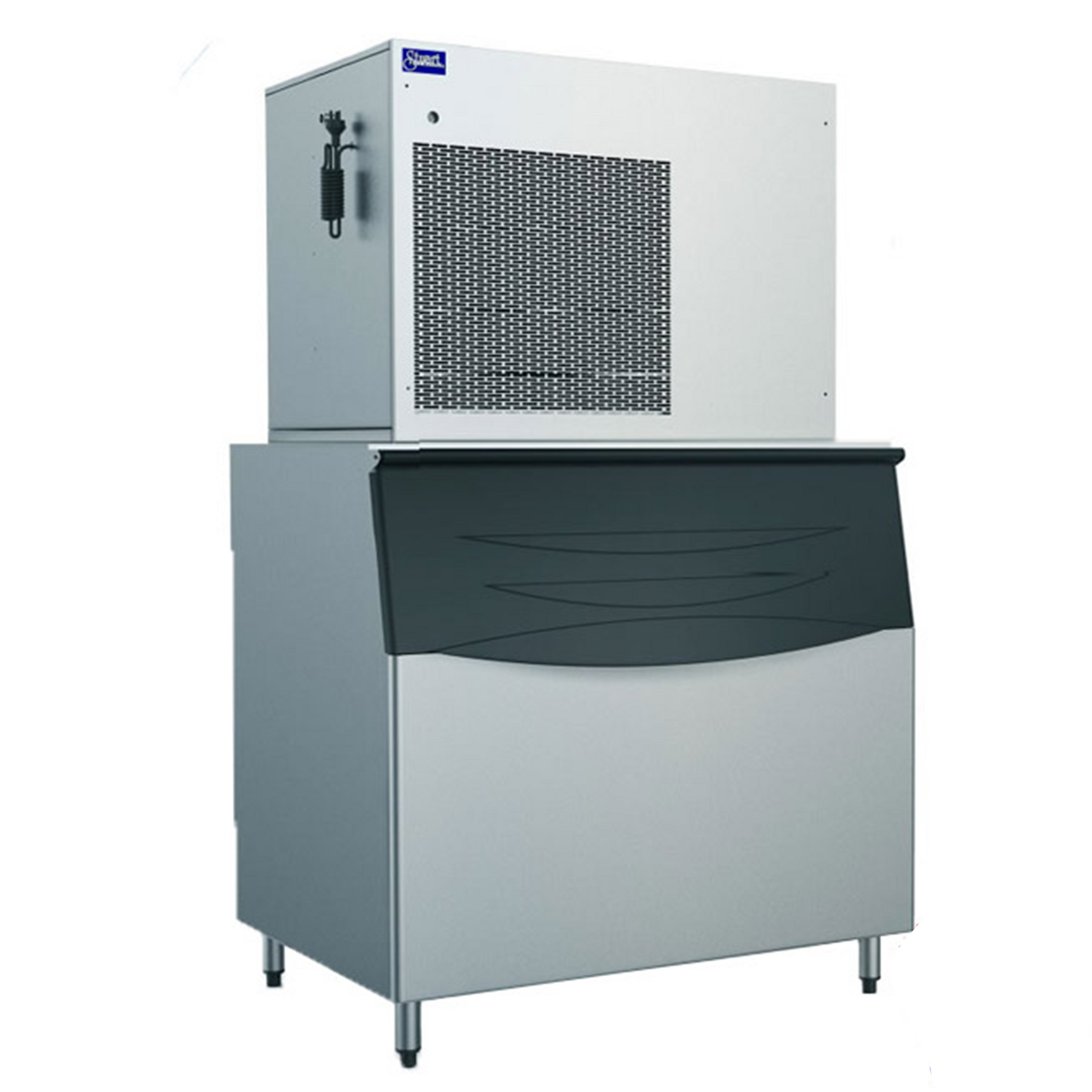

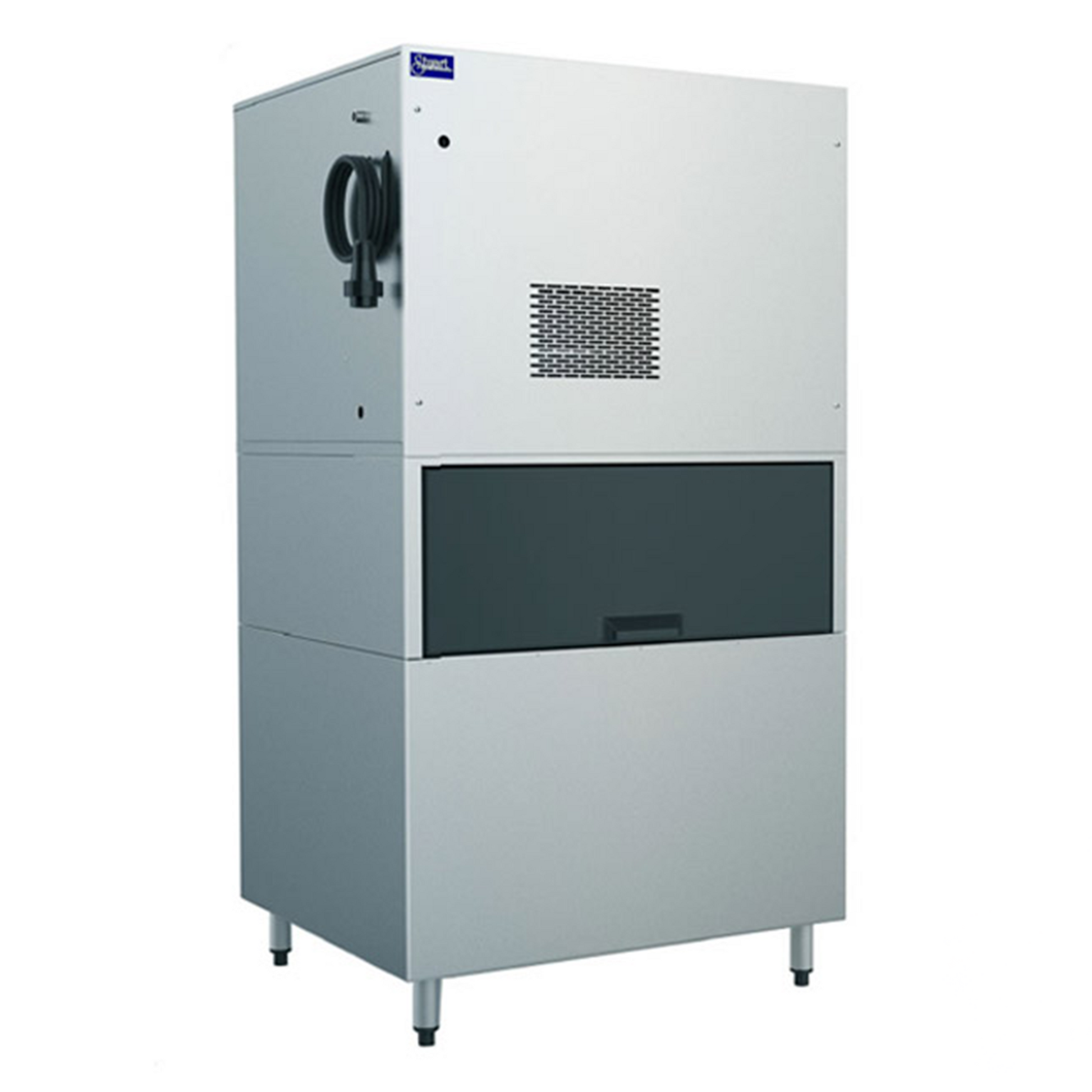

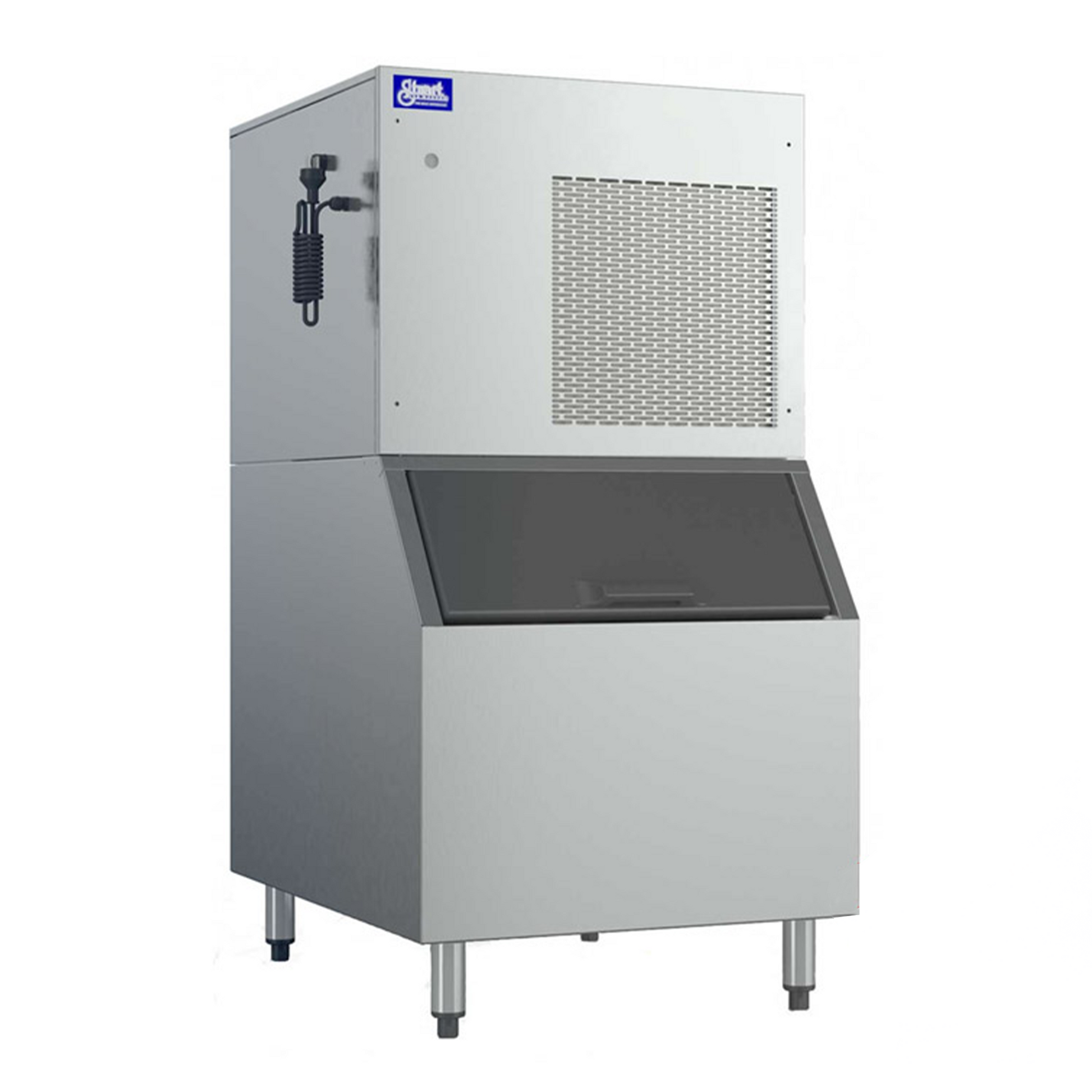

The SC series of ice cubers is capable of producing and storing large quantities of ice cubes for all applications.

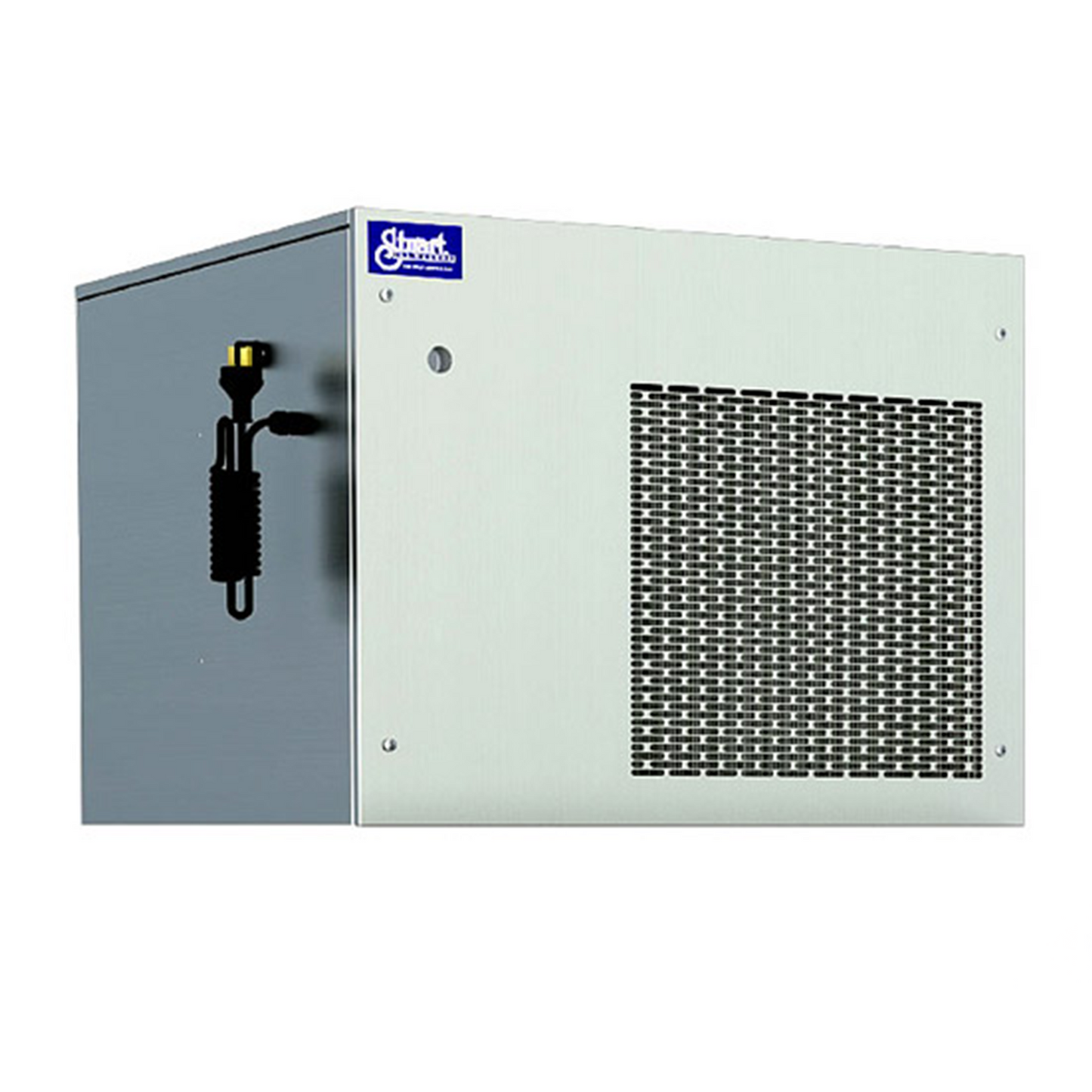

Available as either a head unit on it's own, or a modular unit with a storage bin attached.  Built with locally sourced parts makes acquiring replacement parts cheaper and faster.

Stuart Ice Makers designs and manufactures every ice cuber machine with great attention to detail, to deliver high quality products that meet your ice making needs!

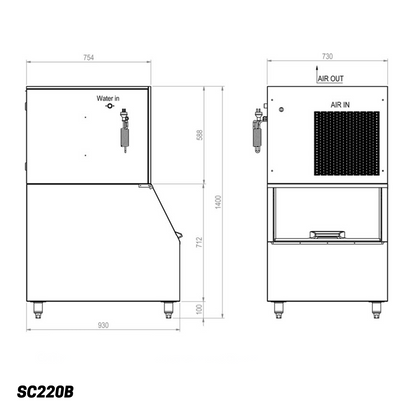

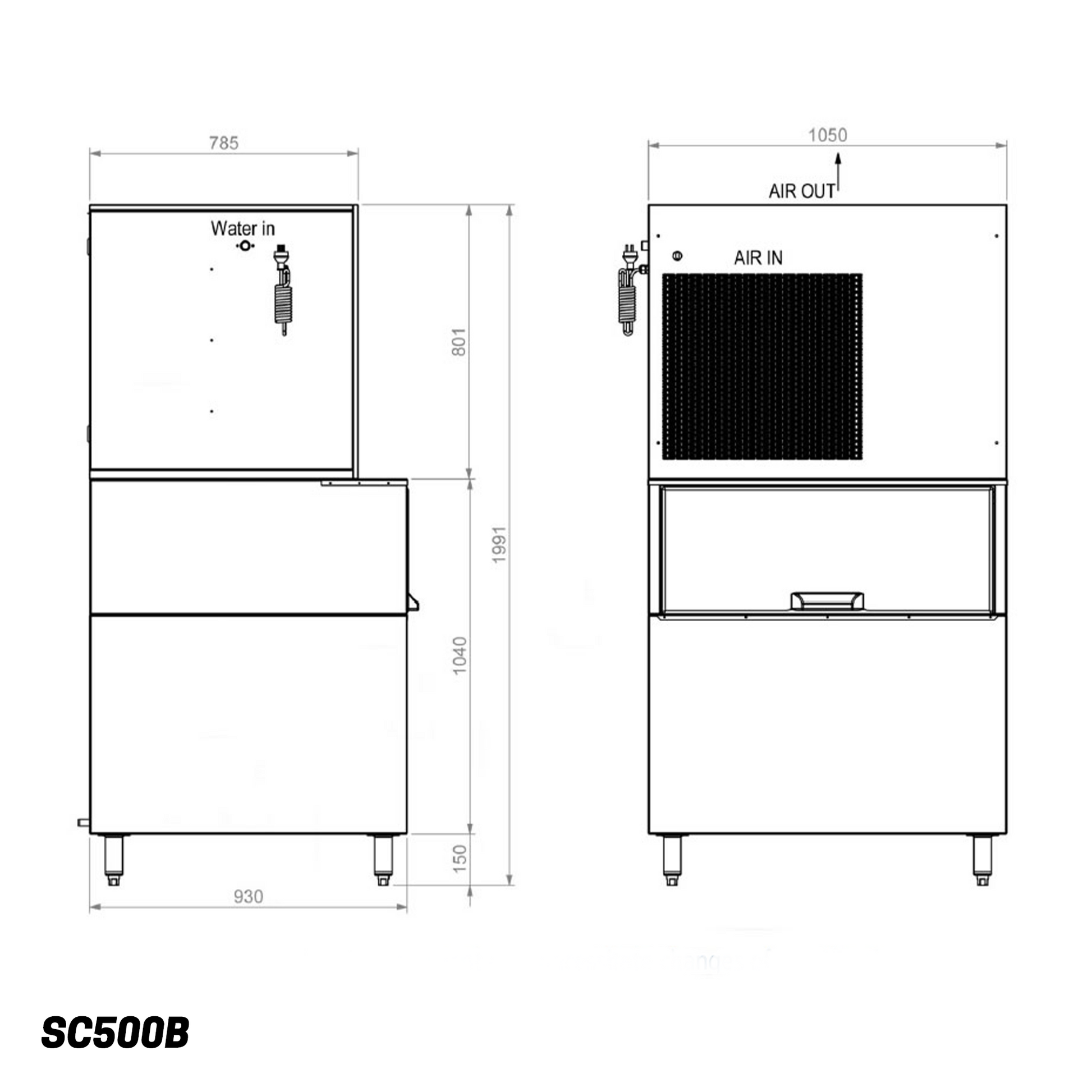

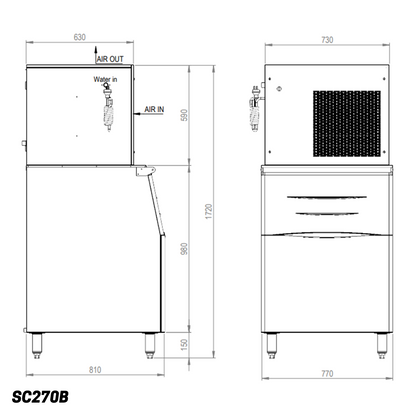

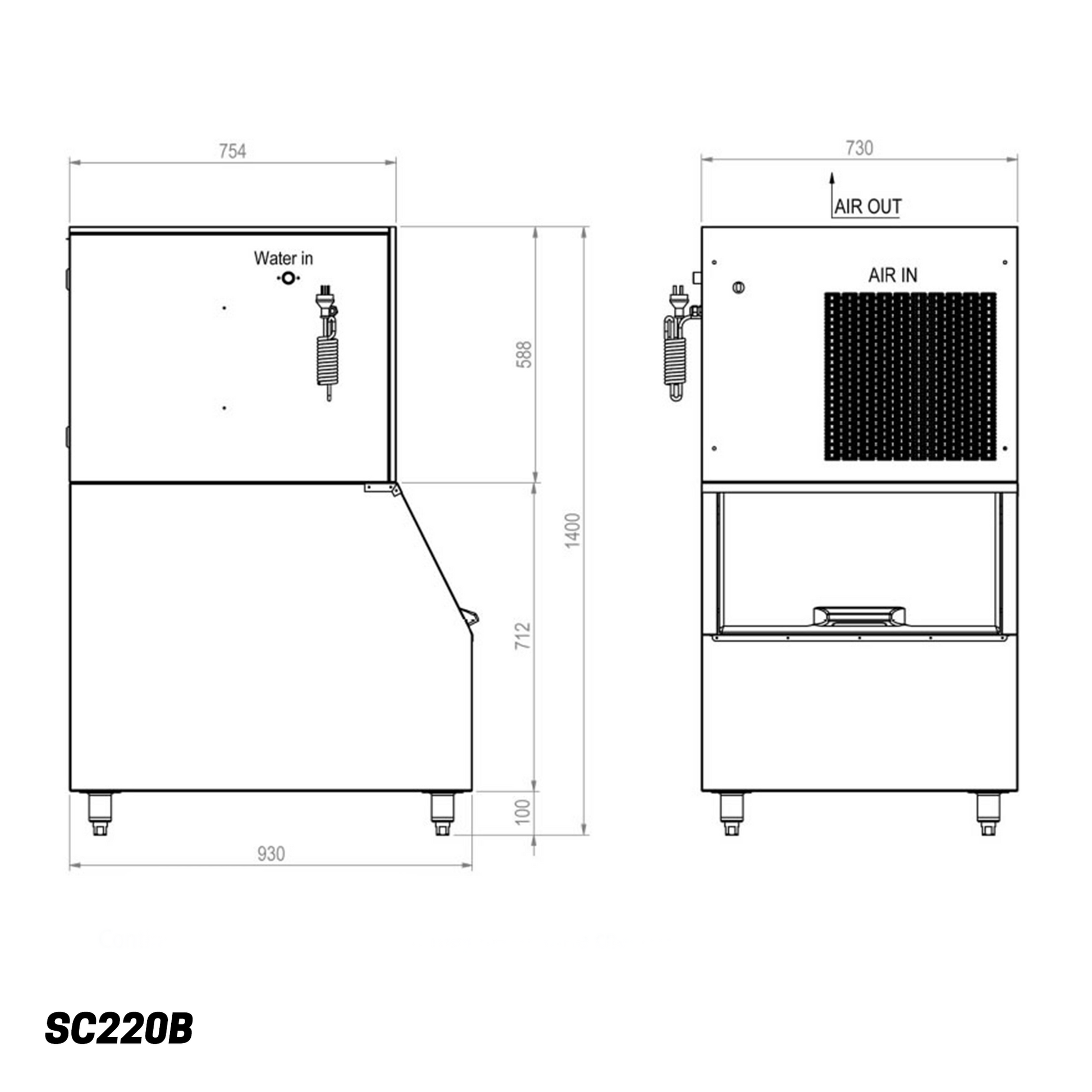

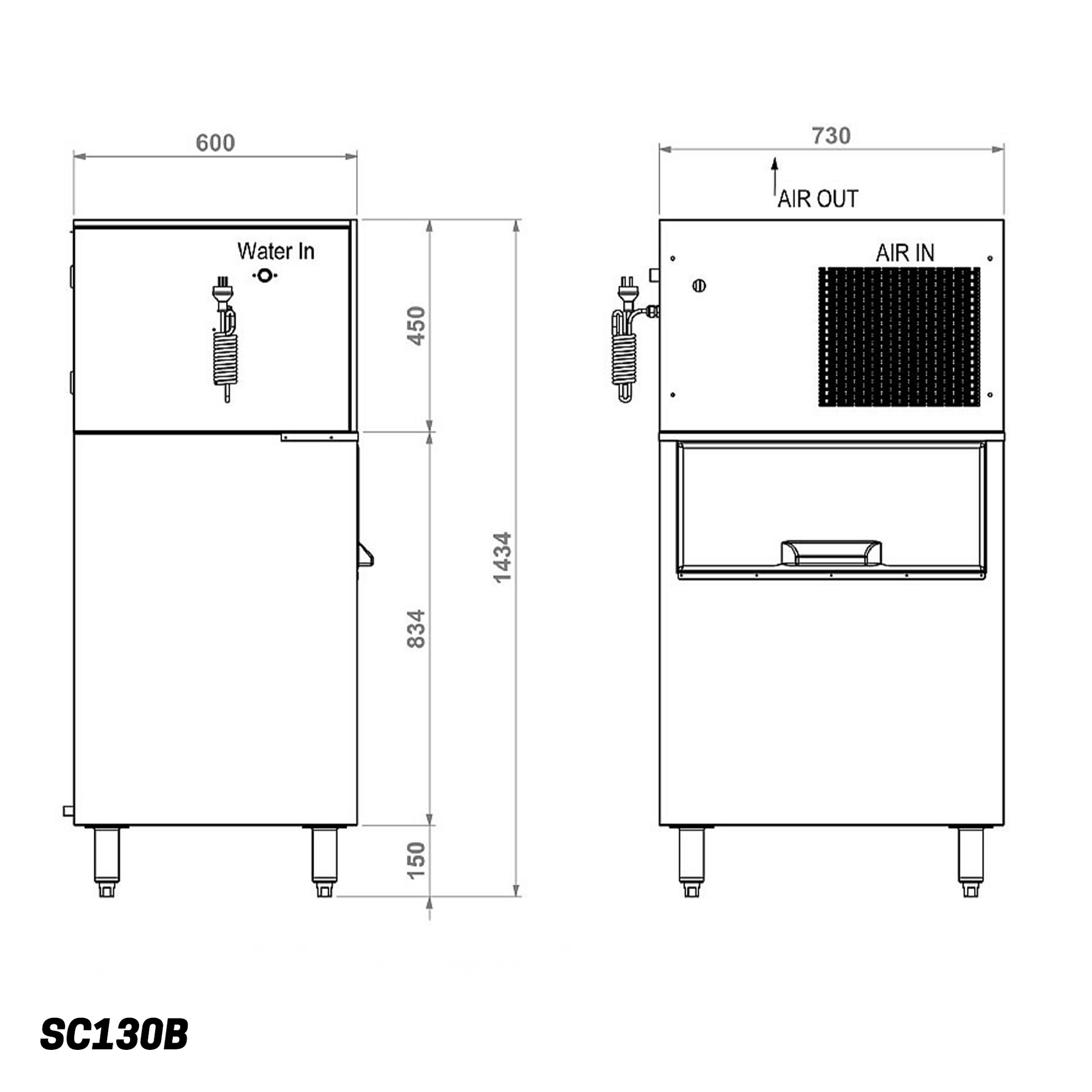

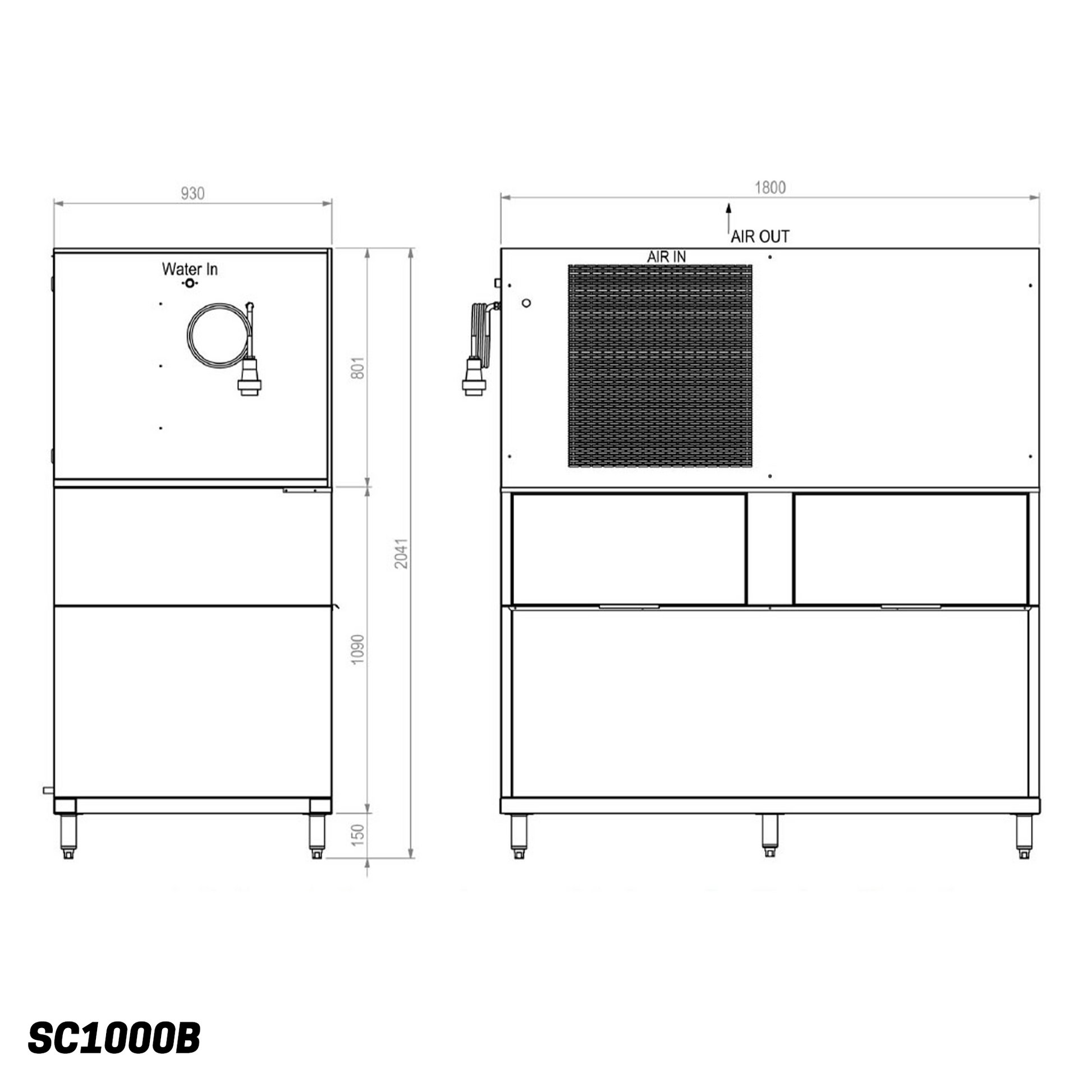

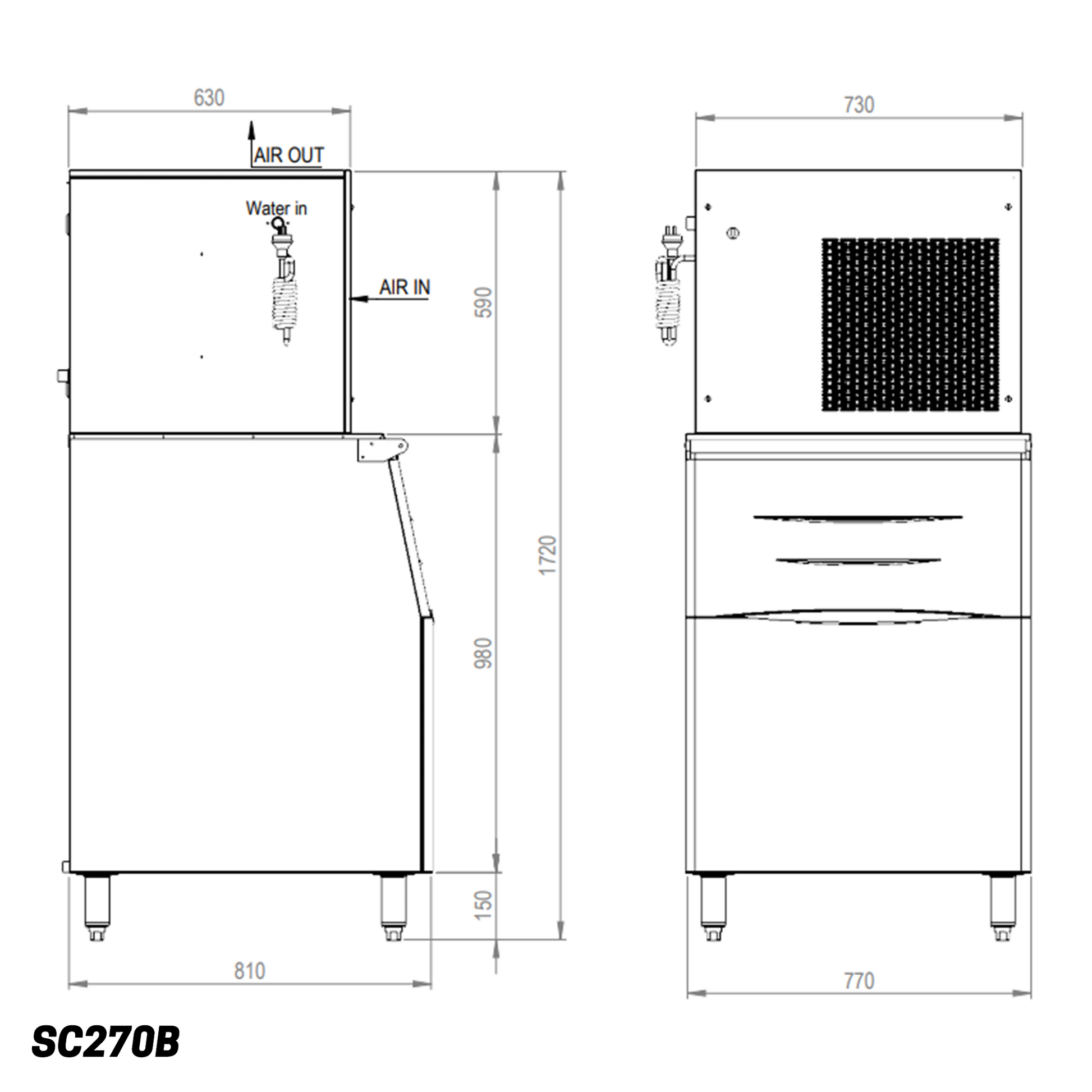

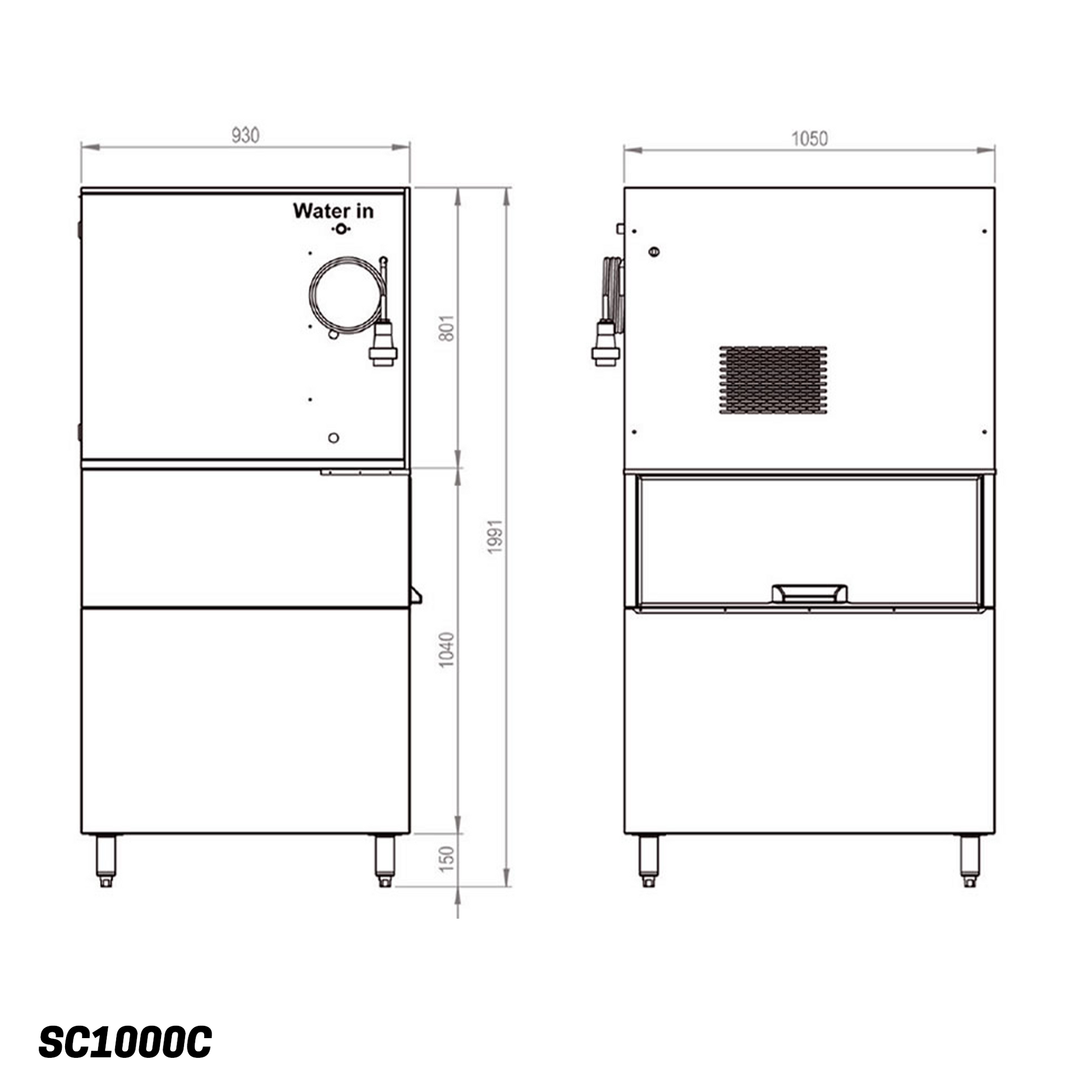

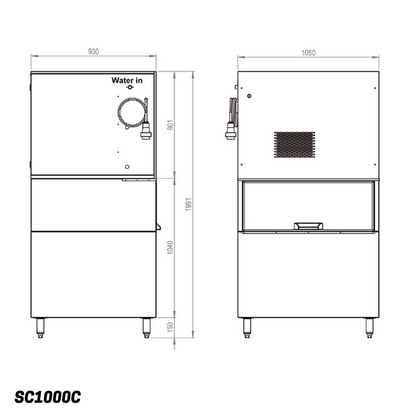

Specifications & Dimensions

    Drainage

    • Floor waste must be within 2 metres of machine

    Water Supply

    • 3/4" BSP male stop cock within 1.5 metres of machine on left hand side

    Modular

    SC 130B 220B 270B 500B 1000CB
    Width (mm) 730 730 770 1230 1050
    Depth (mm) 600 930 810 915 930
    Height (mm) 1425 1400 1720 2015 1990
    Feet Height (mm) 100 100 150 150 150
    Production/ 24 hrs (kg) 152 237 296 575 1136
    Storage Capacity (kg) 100 150 220 400 320
    V/Hz 240/50 415/50
    Amps 3.8 8.5 8.5 12.0 10 amps per phase
    Weight (kg) 100 130 145 218 253
    Cube Size 25x20x20mm 25x20x20mm 25x20x20mm 25x20x20mm 25x20x20mm
    Cube Weight 8-10g 8-10g 8-10g 8-10g 8-10g

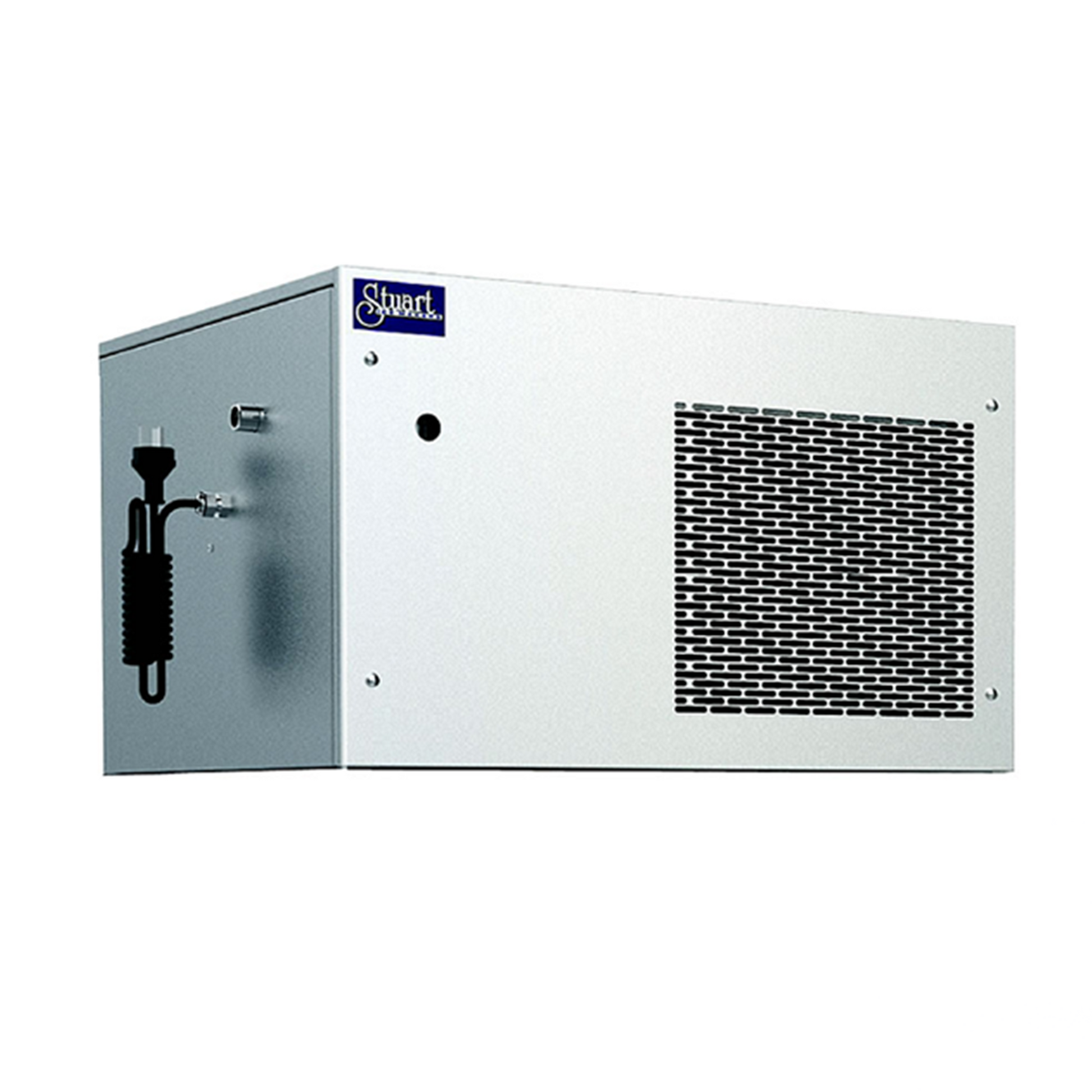

    Head Units


    130H 220H 270H 500H 1000HC*
    Width (mm) 730 730 730 1050 1050
    Depth (mm) 600 630 630 700 930
    Height (mm) 450 590 590 775 800
    Production/ 24 hrs (kg) 152 237 296 575 1136
    V/Hz 240/50 415/50
    Amps 3.8 7.2 8.5 12.0 10 amps per phase
    Weight (kg) 50 80 95 105 175
    Cube Size 25x20x20mm 25x20x20mm 25x20x20mm 25x20x20mm 25x20x20mm
    Cube Weight 8-10g 8-10g 8-10g 8-10g 8-10g



     Production

    Capacity

    130 220 270 500 1000C
    Ambient Temp (Celsius) Water Temp (Celsius) Kg/24 Hours
    21 15 152 237 296 575 1136
    21 21 138 220 284 525 992
    32 21 106 190 255 475 948
    38 21 96 172 231 408 864

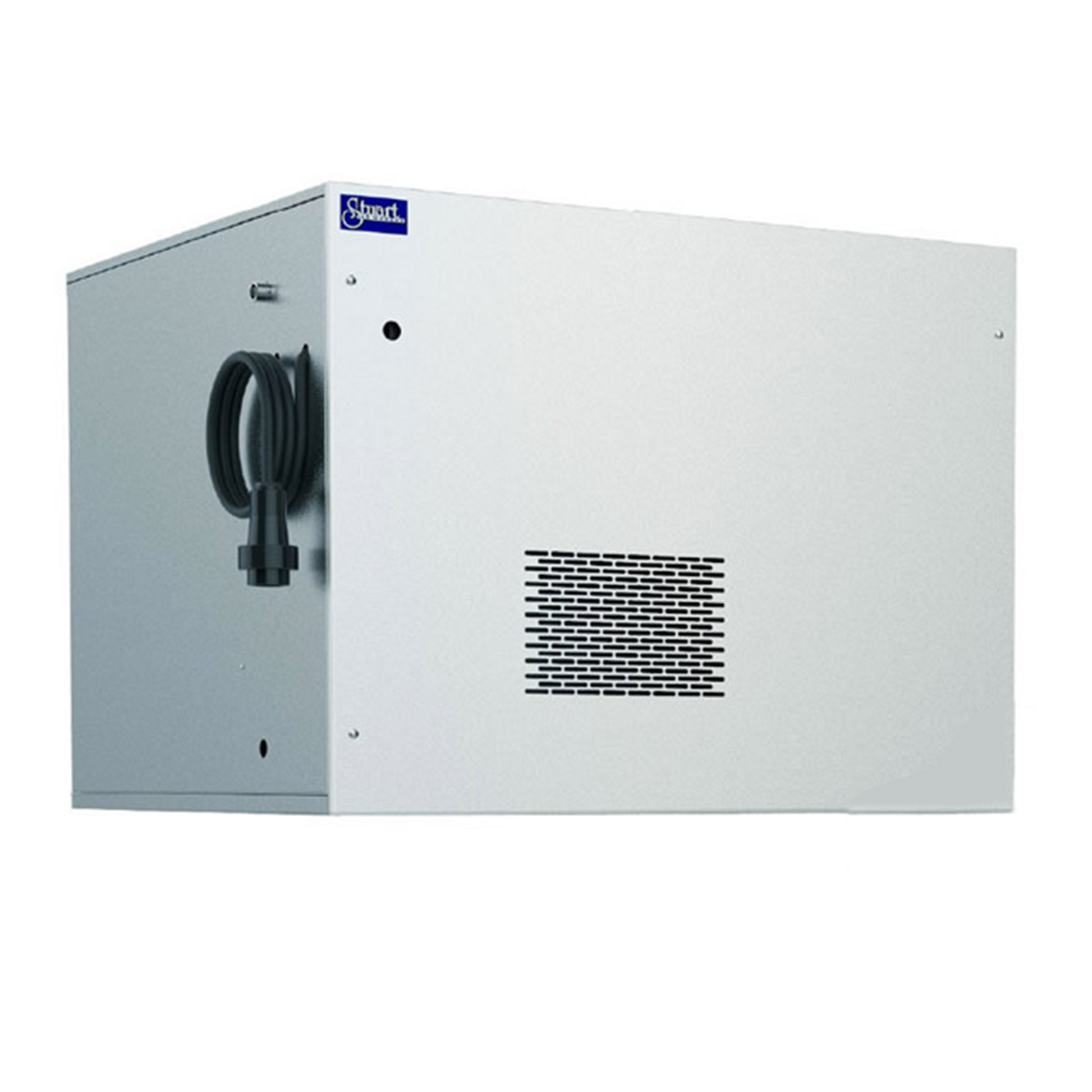

    *SC1000HRC Compact model head unit also includes a remote condenser.

    Spare Parts

    Gen. 3

     Part SC130 SC220 SC270 SC500
    Compressor IM-050654 IM-050766 IM-050766 IM-050841
    Fan/Motor Assembly IM-050348 IM-050348 IM-050348 IM-050620
    Fan Control IM-050622 IM-050622 IM-050622 IM-050622
    Curtain Assembly - Front IM-050774 IM-050757 IM-050776 IM-050778
    Curtain Assembly - Rear IM-050773 IM-050756 IM-050775 IM-050777
    Evaporator Assembly IM-050478SP IM-050751 IM-050523SP IM-050524SP
    Solenoid Valve - Water IM-050023 IM-050023 IM-050023 IM-050023
    Solenoid Valve - Gas IM-050704 IM-050704 IM-050704 IM-050705
    Capillary Tube 1.62mm 1.78mm 1.78mm -

    2500mm 2600mm 2250mm -
    Expansion Valve - Body - - - IM-050850
    Expansion Valve - Office - - - IM-050851
    Control Board IM-050844F IM-050844F IM-050844F IM-050844F
    Display Board IM-050877 IM-050877 IM-050877 IM-050877
    Fuse - 3.15 amp IM-0500011 IM-0500011 IM-0500011 IM-0500011


    Pre-Gen. 3

     Part SC130 SC220 SC270 SC500 SC1000HC
    Compressor IM-050654 IM-050766 IM-050766 IM-050841 IM-050815
    Fan/Motor Assembly IM-050348 IM-050348 IM-050348 IM-050620 IM-050718
    Fan Control IM-050622 IM-050622 IM-050622 IM-050622 IM-050622
    Curtain Assembly - Front IM-050774 IM-050757 IM-050776 IM-050778 IM-050778 x2
    Curtain Assembly - Rear IM-050773 IM-050756 IM-050775 IM-050777 IM-050777 x 2
    Evaporator Assembly IM-050478SP IM-050751 IM-050523SP IM-050524SP IM-05024SO x2
    Solenoid Valve - Water IM-050023 IM-050023 IM-050023 IM-050023 IM-050023
    Solenoid Valve - Gas IM-050704 IM-050704 IM-050704 IM-050705 IM-050706
    Capillary Tube 1.62mm 1.78mm 1.78mm - -

    2500mm 2600mm 2250mm - -
    Expansion Valve - Body - - - IM-050850 IM-050850
    Expansion Valve - Office - - - IM-050851 IM-050851
    Power Board IM-050009 IM-050009 IM-050009 IM-050009 IM-050009
    Logic Board IM-050010 IM-050010 IM-050010 IM-050010 IM-050010
    Interface Board - - - - IM-050148
    Fuse - 3.15 amp IM-0500011 IM-0500011 IM-0500011 IM-0500011 -
    Fuse - 5 amp - - - - IM-050180
    Switch - Water Curtain IM-050043 IM-050043 IM-050043 IM-050043 IM-050043
    Magnet - Water Curtain IM-050794 IM-050794 IM-050794 IM-050794 IM-050794
    Float - High Level IM-050043 IM-050043 IM-050043 IM-050043 IM-050043
    Float - Low Level IM-050074 IM-050074 IM-050074 IM-050074 IM-050074
    Pump - Water IM-050570 IM-050570 IM-050570 IM-050570 IM-050570 x 2
    Contactor - - - - IM-050311



    FAQs & Troubleshooting

    Generation 3 Information

    Since 2021, Stuart Ice Machines has been supplying an upgraded version of the SC series, formally known as the Generation 3 range.

    The upgraded ice machines include the following upgrades...

    • New control board
    • New display board
    • Half dice or full dice option of cube size
    • HP control to protect the compressor should the fan fail

    These upgrades apply to the SC130, SC220, SC270 and SC500 model ice machines.

    New Control & Display Board

    The new control board continues to be made in Australia and has some significant enhancements.

    All functions are now operated through the main control board and the machine will actually operate without the display board attached. This eliminates any confusion about which board is faulty when diagnosing problems.

    Ice thickness is now adjusted via the + and – buttons on the display board at the front of the machine without the need to remove any panels or access the float switch at the side of the machine.

    Additional Ice Cube sizes

    In addition to our current standard cube size we can now also offer a half dice cube. This is better suited to those venues using blenders for drinks. Please contact us for a quote on this.
